Microwave/RF Cable Assembly Builder

Introduced in 1976, Gore’s RF custom cable assemblies are trusted worldwide thanks to our rigorous testing and qualification processes, both of which prove our products’ performance before they’re available for purchase. This means reliable electrical and mechanical performance that’s superior to alternative solutions, with our full range of solutions across industries, including:

• GORE-FLIGHT® Microwave Assemblies, 6 Series for Defense Aircraft
• GORE® Microwave/RF Assemblies, 7 Series for Defense Aircraft
• GORE® Microwave/RF Assemblies for Defense Aircraft
• GORE® PHASEFLEX® Test Assemblies for Defense Aircraft

• GORE-FLIGHT® Microwave Assemblies, 6 Series for Civil Aircraft
• GORE® Microwave/RF Assemblies, 7 Series for Civil Aircraft
• GORE® Microwave/RF Assemblies for Civil Aircraft
• GORE® Leaky Feeder Antennas for Civil Aircraft
• GORE® PHASEFLEX® Test Assemblies for Civil Aircraft

• GORE® Spaceflight Microwave/RF Assemblies for Traditional Space
• GORE® Spaceflight Microwave/RF Assemblies (Ka-Band) for Traditional Space
• GORE® Spaceflight Microwave/RF Assemblies for NewSpace
• GORE® PHASEFLEX® Test Assemblies for Spaceflight Applications

• GORE® Microwave/RF Assemblies, 7 Series for Defense Land Systems

• GORE® PHASEFLEX® Microwave/RF Test Assemblies
• GORE® PHASEFLEX® Microwave/RF Test Assemblies, 110 GHz
• GORE® Microwave/RF Assemblies, General Purpose Test
• GORE® VNA Microwave/RF Test Assemblies

• GORE® PHASEFLEX® Microwave/RF Test Assemblies
• GORE® Microwave/RF Assemblies, General Purpose Test
• GORE® VNA Microwave/RF Test Assemblies

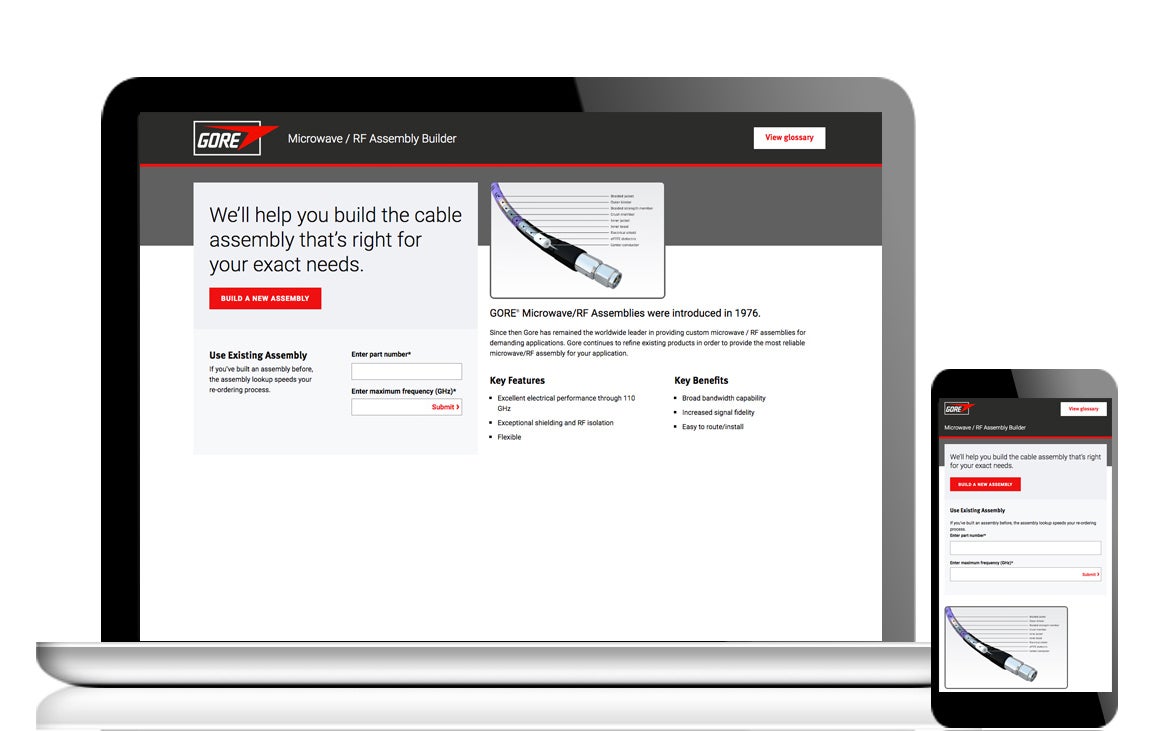

With the GORE® Microwave/RF Cable Assembly Builder, you can compare product details and specifications of each of our solutions, including various individual part numbers. Compatible with both mobile and desktop devices, the tool includes helpful imagery, step-by-step instructions and a glossary of terms to describe Gore products. Resources, such as this one, are continuously refined by Gore to allow you to design a microwave/RF cable assembly quickly, easily and at your convenience. Afterwards, you can submit a quote, and a Gore specialist will review your designs and application requirements.

This tool from Gore serves both new and returning customers as detailed below:

To design and build a new cable assembly for your needs, simply follow these steps:

1. Access Gore’s Microwave/RF Cable Assembly Builder at microwave-cablebuilder.gore.com.
2. Choose BUILD A NEW CABLE ASSEMBLY.
3. Complete Steps 1-4, which direct you on the following:
   • Configure an assembly
   • Customize frequency, length and cable features
   • Select the right connector
4. Download your custom datasheets for your builds within minutes.
5. If you’re ready, submit your builds for a quote.

If you’ve worked with Gore in the past and currently use our products, our Microwave RF/Cable Assembly Builder allows you to enter an existing part number so you can retrieve specifications and submit a quote request for it. Simply enter your part number and maximum frequency (GHz) in the search bar at microwave-cablebuilder.gore.com.

Gore’s full line of microwave/RF cable assemblies are available through a number of trusted distributors. To learn more, contact Gore today.
