Overview
Chemical processors use glass-lined steel pipe and equipment to deal with aggressive media under demanding conditions. Yet the inherent demands of such systems can make it challenging to maintain a tight, lasting seal and prevent leaks that can pose hazards to the equipment, and to the working environment.
GLASS-LINED STEEL SEALING CHALLENGES
- High temperatures
- Alternating system pressures
- Limited gasket loads
- Deviations in flanges / sealing surfaces
GORE GASKET TAPE SERIES 1000
GORE Gasket Tape Series 1000 addresses all the challenges of reliably sealing large glass-lined flanges. Made of 100% expanded PTFE (ePTFE), this highly conformable sealant tape is chemically inert, and highly resistant to creep, cold flow and clamp-force loss. Its proprietary barrier core maintains an extra-tight seal even at low loads.
Highly creep resistant, to maintain gasket load
Highly conformable, to seal surface deviations
Barrier core for extra tightness at low loads
Chemically-inert 100% ePTFE protects full width of flange

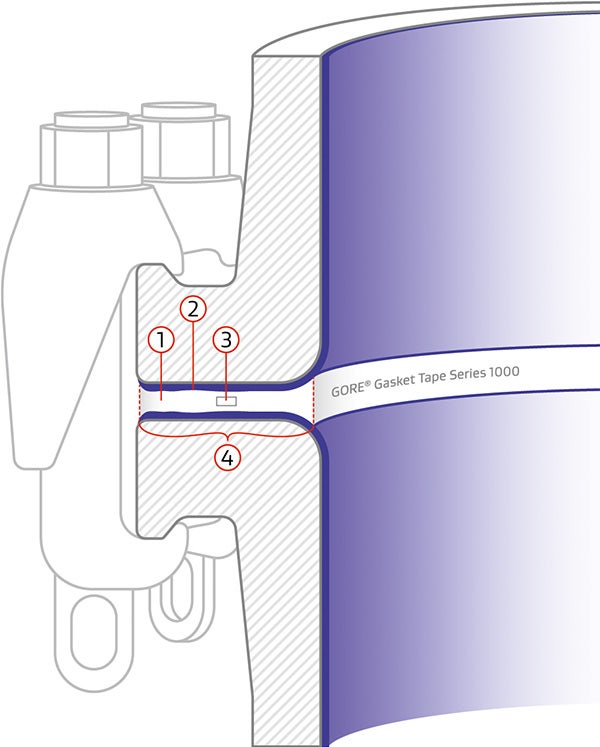

![Cutaway drawing shows four ways GORE® Gasket Tape Series 1000 protects glass-lined flanges from leaks.](/sites/default/files/2023-02/Gore_Series1000_Cutaway_Drawing_GLS_Flange_600px_0.jpg 1x, /sites/default/files/2023-02/Gore_Series1000_Cutaway_Drawing_GLS_Flange_600px_0.jpg 2x)
Applications
GORE Gasket Tape Series 1000 offers the performance and versatility to reliably seal a range of industrial glass-lined equipment, in diverse applications with harsh process conditions.
- Processes that use highly-aggressive media, for example, in the chemical processing or mining and minerals industries.
- Any glass-lined columns, mixer vessels, or reactor, storage and receiver tanks with glass-lined steel flanges that are large (≥ DN600/ASME 24”) or non-standard.
APPLICATIONS FOR GORE GASKET TAPE SERIES 1000

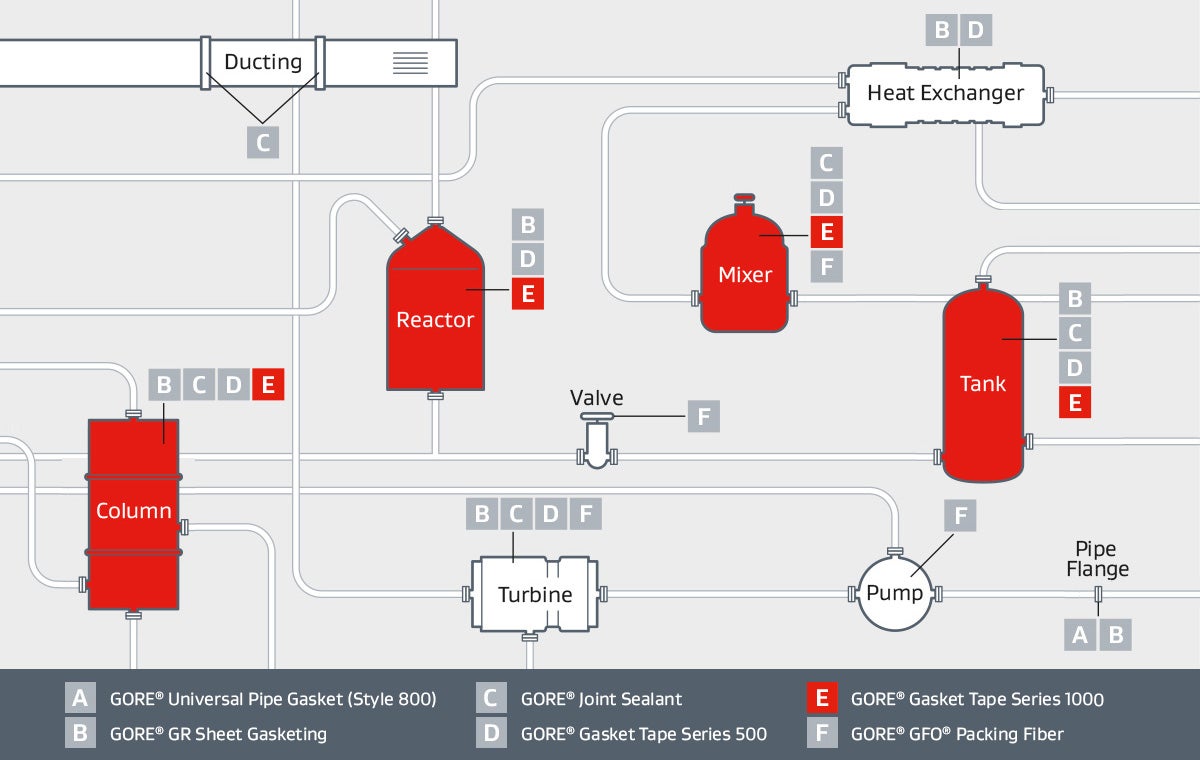

![A diagram of piping and equipment highlights diverse applications for GORE Gasket Tape Series 1000 including columns, reactors, mixers and tanks.](/sites/default/files/2023-02/Gore_Series1000_Applications_1200px.jpg 1x, /sites/default/files/2023-02/Gore_Series1000_Applications_1200px.jpg 2x)
GORE® Gasket Tape Series 1000 addresses all the challenges of reliably sealing large glass-lined steel flanges.
Performance Benefits
With Gore’s advanced ePTFE material technology and its proprietary barrier core, our Series 1000 gasket tape enables high-performance, high-reliability sealing.
Why consider ePTFE tape
Unique barrier core technology
- Barrier core engineered to amplify the available load.
- Seals more than 10 times tighter than other ePTFE gasket tapes. (Especially important where glass-lined reactor safety is a consideration.)
Outstanding conformability to deviations
- Seals deviations even at low gasket stress.
- Easily passes the bubble test, for trouble-free mechanical completion (MC) or start-up.

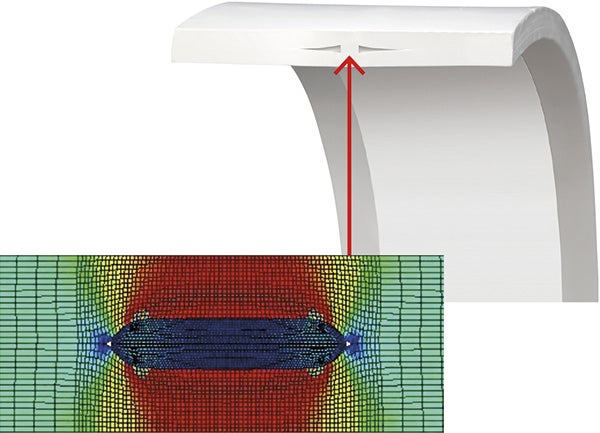

![Computational analysis shows cross-section of GORE Gasket Tape Series 1000 exhibits optimal sealing stress](/sites/default/files/2023-02/Gore_Series1000_FEA_Model_600px.jpg 1x, /sites/default/files/2023-02/Gore_Series1000_FEA_Model_600px.jpg 2x)
Cross section of GORE® Gasket Tape Series 1000 checked with Finite Element Analysis (FEA) model. Red indicates optimal sealing stress.
Optimal form for easy handling
- Gasket can be customized on-site.
- No fabrication lead-time required.
- Convenient spool format simplifies and speeds handling & transport.
- Adhesive backing enables easy installation in ambient temperatures from 2–50 °C (36–122 °F).
- Faster, less complicated shimming tape technique for larger deviations.
- Reduces inventory costs.

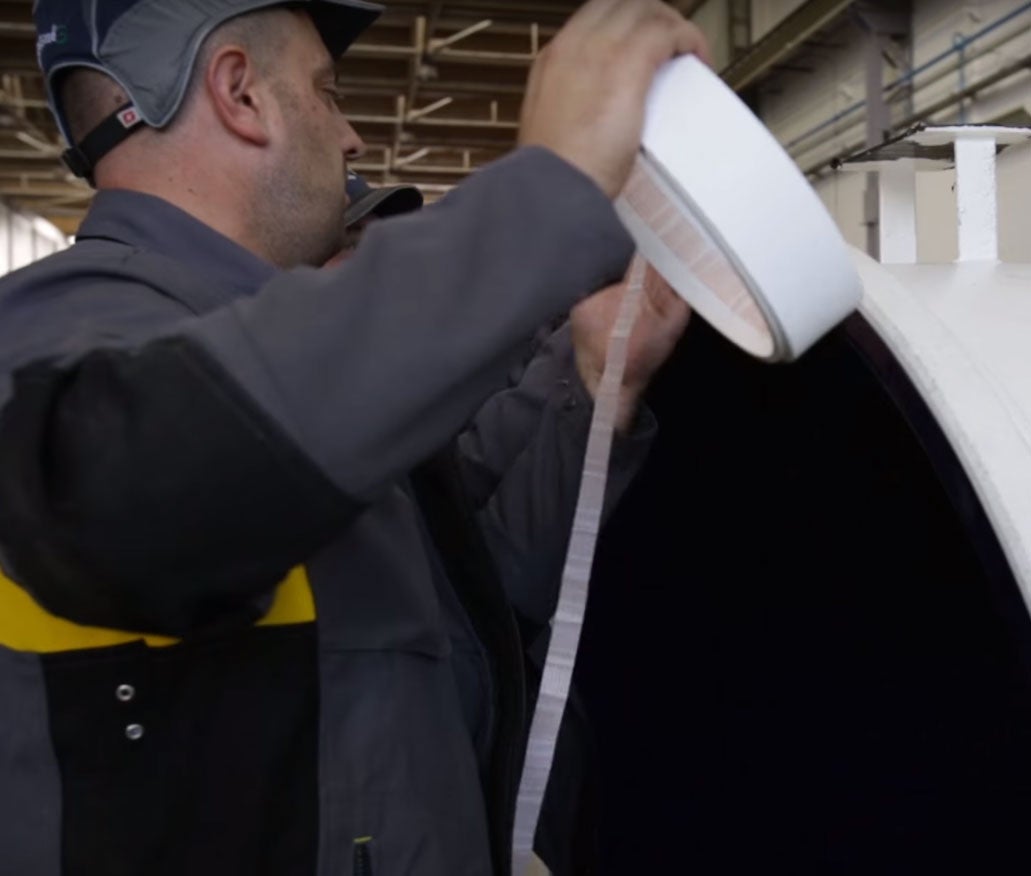

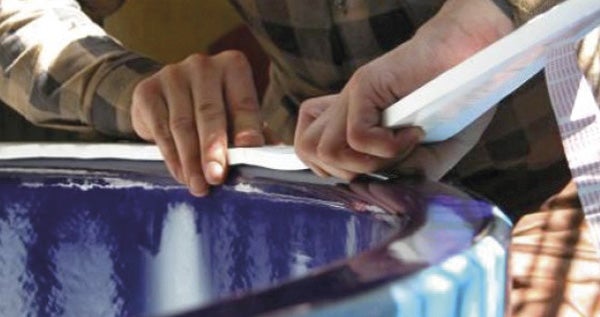

![Gore Gasket Tape Series 1000 is easy to install whether industrial glass-lined equipment surface temperatures are that of a hot summer day,d or nearly freezing.](/sites/default/files/2023-02/Gore_Series1000_Installation_Picture_600px.jpg 1x, /sites/default/files/2023-02/Gore_Series1000_Installation_Picture_600px.jpg 2x)
Installation temperature window is effective from hot summer conditions to almost freezing surface temperature.
Reliable and long-term seal
- Barrier core creates a tight seal that impedes even highly-permeating media.
- Provides chemical protection across the full flange width (100% ePTFE).
- Tape is engineered to resist creep and clamp-force loss.
- Allows full use of specification range of the glass-lined steel equipment.
- Enables longer maintenance cycles, as demanded by leading chemical producers.

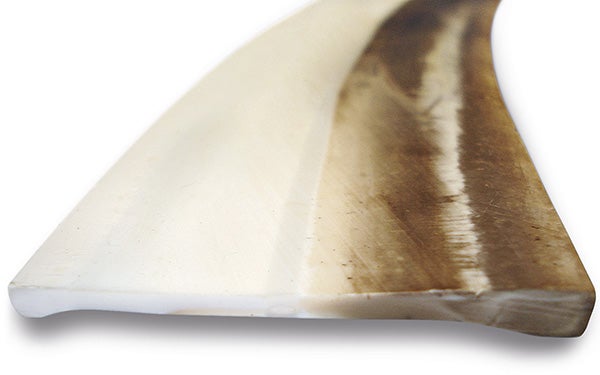

![Even after exposure to aggressive media, this cross-section of GORE Gasket Tape Series 1000 still retains its sealing integrity.](/sites/default/files/2023-02/Gore_Series1000_Cross_Section_600px.jpg 1x, /sites/default/files/2023-02/Gore_Series1000_Cross_Section_600px.jpg 2x)
Cross-section shows how well GORE Gasket Tape Series 1000 endures in challenging conditions with aggressive media.
GORE GASKET TAPE SERIES 1000 OUTPERFORMS THE COMPETITION
Technical Specifications
See how fast and easy it is to reliably seal a large flange with GORE Gasket Tape Series 1000: |
Test Data
Certificates & Application Information
Resources
![Flyer: GORE Gasket Tape Series 1000 Overview](/sites/default/files/2022-07/Flyer-thumbnail-600x500.jpg 1x, /sites/default/files/2022-07/Flyer-thumbnail-600x500.jpg 2x)
Product Flyer: GORE® Gasket Tape Series 1000
Brochures, 490.88 KB
![Datasheet: Gasket Tape Series 1000](/sites/default/files/styles/resource_full/public/2022-12/gore-gasket-tape-series-1000-datasheet-dec-2022-thumb-600x500.jpg?itok=QXJ43r0O 1x, /sites/default/files/styles/resource_full/public/2022-12/gore-gasket-tape-series-1000-datasheet-dec-2022-thumb-600x500.jpg?itok=QXJ43r0O 2x)
Data Sheet: GORE® Gasket Tape Series 1000
Data Sheets, 193.31 KB

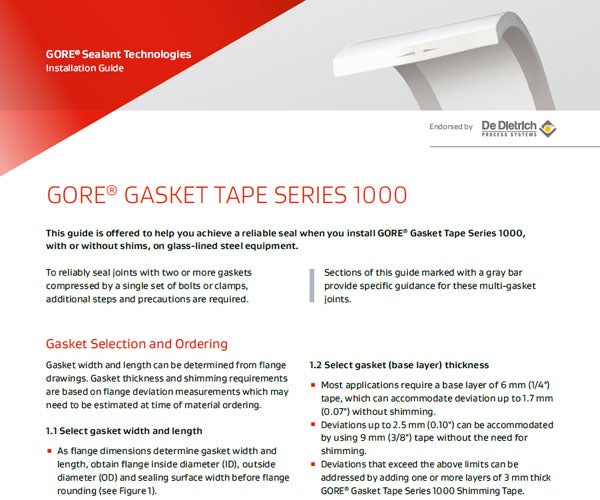

![Thumbnail image of Gasket Tape Series 1000 Installation Instructions](/sites/default/files/2022-07/Installation-Guide-thumbnail-600x500.jpg 1x, /sites/default/files/2022-07/Installation-Guide-thumbnail-600x500.jpg 2x)
Installation Guide: GORE® Gasket Tape Series 1000
Installation Guides, 499.9 KB
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
